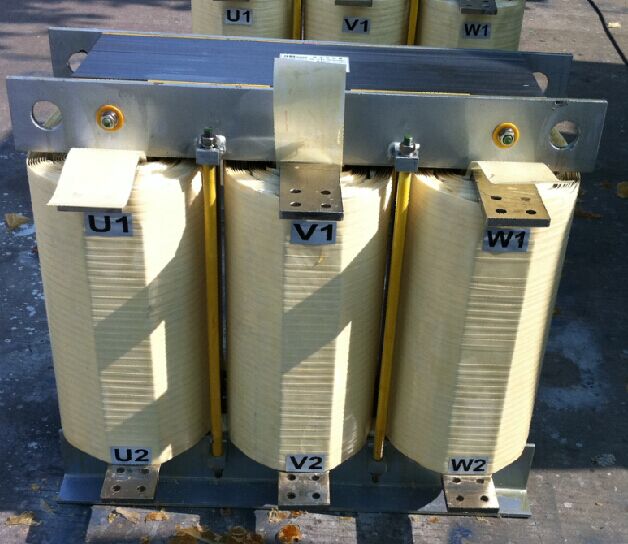

產品描述
|
變頻器專用輸入輸出電抗器選型表 |
|
適用變頻器功率KW |
變頻器輸出電抗器 |
變頻器輸入電抗器 |
電流A |
電感mh |
安裝mm |
外形mm |
|
0.75-2.5 |
AKSG10A |
AKSGR10A |
10 |
0.637 |
75*55 |
140*75*145 |
|
4-5.5 |
AKSG15A |
AKSGR15A |
15 |
0.425 |
75*55 |
140*75*145 |
|
7.5 |
AKSG20A |
AKSGR20A |
20 |
0.318 |
75*55 |
140*75*145 |
|
11 |
AKSG30A |
AKSGR30A |
30 |
0.212 |
75*55 |
140*75*145 |
|
15 |
AKSG40A |
AKSGR40A |
40 |
0.159 |
80*70 |
170*150*135 |
|
18 |
AKSG50A |
AKSGR50A |
50 |
0.127 |
80*70 |
170*150*135 |
|
22 |
AKSG60A |
AKSGR60A |
60 |
0.106 |
80*70 |
170*150*135 |
|
30 |
AKSG70A |
AKSGR70A |
70 |
0.091 |
110*65 |
210*155*167 |
|
30 |
AKSG80A |
AKSGR80A |
80 |
0.081 |
110*65 |
210*155*167 |
|
37 |
AKSG110A |
AKSGR110A |
110 |
0.058 |
110*65 |
210*155*167 |
|
45 |
AKSG125A |
AKSGR125A |
125 |
0.051 |
110*82 |
210*180*167 |
|
55 |
AKSG150A |
AKSGR150A |
150 |
0.032 |
130*110 |
240*215*210 |
|
75 |
AKSG200A |
AKSGR200A |
200 |
0.032 |
130*110 |
240*215*210 |
|
93 |
AKSG250A |
AKSGR250A |
250 |
0.025 |
130*110 |
240*215*210 |
|
110 |
AKSG275A |
AKSGR275A |
275 |
0.023 |
130*110 |
240*215*210 |
|
132 |
AKSG330A |
AKSGR330A |
330 |
0.019 |
130*110 |
240*215*210 |
|
160 |
AKSG450A |
AKSGR450A |
450 |
0.016 |
170*118 |
280*240*290 |
|
187 |
AKSG500A |
AKSGR500A |
500 |
0.013 |
170*118 |
280*240*290 |
|
220 |
AKSG540A |
AKSGR540A |
540 |
0.012 |
170*118 |
280*240*290 |
|
250 |
AKSG625A |
AKSGR625A |
625 |
0.010 |
170*118 |
280*240*290 |
|
315 |
AKSG800A |
AKSGR800A |
800 |
0.008 |
193*120 |
320*260*290 |
|
375 |
AKSG1000A |
AKSGR1000A |
1000 |
0.006 |
193*120 |
320*260*350 |
|
400 |
AKSG1200A |
AKSGR1200A |
1200 |
0.005 |
246*140 |
400*260*380 |
